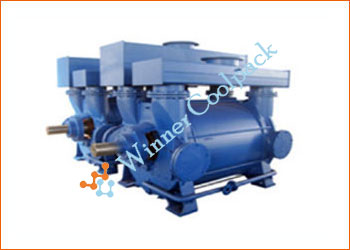

Liquid Ring Vacuum Pump 2wbe3 Series


The 2WBE3 liquid ring vacuum pumps and compressors are high efficient and energy saving products developed by our company on the basis of our scientific achievements and production experiences over the years and internationally advanced technique of similar products. They are also applicable for corrosive gases or corrosive liquid can be used as treatment fluid by modifying materials of parts. The products are being widely used in fields of paper making chemistry, pharmacy, coal dressing, mineral, stoneware, and chemical fertilizer due to their outstanding and reliable performance and durability.



Main Feature

• 2WBE3 vacuum pump set the suction and discharge flanges both on the top and sides with the same diameter so on site installations are more flexible and convenient.
• The material of the impeller is welded with nodular iron or steel to ensure the high stability and increase the lifetime of the pump greatly during any hard conditions.
• The pump body is made of steel or stainless steel plates to increase the lifetime of the pump.
• The mechanical seals (option) adopt the imported parts to fully ensure the pump in the long-running process without leakage.
• The gap, corrosion status, fouling situation can be easily observed by the big inspection port on both sides of the pump cover.
• All bearings adopt the imported products in order to ensure precise orientation of impeller and high stability during the running.
• The pulley (when the pump is driven by the belt) adopts standard high precise taper bushing pulley to keep the reliable running and increase its lifetime, also it is easy to dismantle.
• The shaft sleeve as the most easily damaged part, our shaft sleeve is made of stainless steel to increase the lifetime of the pump five times than normal material.
• Special separator built-on the pump can save the space and reduce the noise efficiently.
• All the castings by the resin sands with great quality, no puttying. Keep the heat dissipation is the best.

Technical Data:

Model Ultimate Vacuum hpa Rotary Speed (rpm) Pumping Speed (m/hr) Motor Power (kw) Transmission Type Pump Weight (kg Inlet Diam (mm) Outlet Diam (mm)
2WBE3 400 0 160 300 70.0 75 Gear box/ belt 4050 300 300
  330 77.5 90
  350 81.0 110
  390 91.0 110
  449 103.0 132
  475 110.0 160
  498 115.0 160
2WBE3 420 160 530 124 185
  300 97.5 110 Gear box/ belt 4200 300 300
  330 105 132
  370 123 160
  390 128 160
  420 130 185
  470 143 185
  530 170 220
2WBE3 500 160 236 125 165 Gear box/ belt 6110 300 350
  266 143 185
  294 167 200
  340 190 250
  380 208 280
  420 225 315
2WBE3 520 160 236 150 185 Gear box/ belt 6740 350 350
  266 165 220
  336 235 280
  366 250 315
  421 280 400
  468 307.5 500
2WBE3 600 160 236 197 250 Gear box/ belt 9100 350 400
  265 236.5 280
  290 266.7 315
  330 276.6 400
  370 323.3 450
2WBE3 620 160 200 220 220 Gear box/ belt 10700 400 400
  230 253 315
  266 288.3 355
  297 322 400
  330 355 450
  372 400 560
2WBE3 670 160 175 242 315 Gear box/ belt 12700 500 500
  210 290 400
  270 375 450
  300 430 560
  320 450 630
  330 462 630
  370 516 800
2WBE3 720 160 190 335 400 Gear box/ belt 15700 500 500
  210 396 450
  240 450 560
  270 500 630
  300 560 710


Notes : The motor recommended above can work under most conditions. Ex. The exhaust pressure exceeds the range of 0.020.05Mpa, then increase the motor. If the shaft power of 2WBE1 vacuum pump is minor in normal working, also canchoose the motor with lower power near to the shaft power can save more energy..
Notes : The water temperature of Liquid ring vacuum pump is great impact on its performance, but the performance curve is tested under water temperature at 15?, so when actual selection of the vacuum pump, the suction rate should be corrected. Correction method refers to: water temperature impact on pump performance.

Model     Water consumption of the following suction pressure (mbar) [m3/h]

    Speed range (rpm) 160 200 300 400 500 600 700 800
2 WBE1102 1 1450 1300~1750 1.1 1.1 0.73 0.73 0.73 0.73 0.36 0.36
2 WBE1103 1450 1300~1750 1.4 1.4 0.93 0.93 0.93 0.93 0.47 0.47
2 WBE1151 1450 1100~1750 1.5 1.4 1 1 1 1 0.5 0.57
2 WBE1152 1450 1100~1750 1.7 1.7 1.13 1.13 1.13 1.13 0.57 0.63
2 WBE1153 1450 1100~1750 1.9 1.9 1.27 1.27 1.27 1.27 0.63 0.7
2 WBE1202 980 790~1300 2.1 2.1 1.4 1.4 1.4 1.4 0.7 0.87
2 WBE1203 980 790~1300 2.6 2.6 1.73 1.73 1.73 1.73 0.87 1.47
2 WBE1252 740 558~938 4.4 4.4 2.93 2.93 2.93 2.93 1.47 1.73
2 WBE1253 740 560~938 5.2 5.2 3.47 3.47 3.47 3.47 1.73 2.9
2 WBE1303 660 466~743 8.5 8.2 6.8 6.8 5.7 5.7 2.9 3.3
2 WBE1305 660 466~743 8.2 8.2 7.8 7.0 6.0 5.1 4.2 3.3
2 WBE1306 660 466~743 8.2 8.2 7.8 7.0 6.0 5.1 4.2 2.7
2 WBE1353 530 372~660   12.1 10.5 9.0 7.4 5.8 4.3 4.3
2 WBE1355 530 372~660 10.9 10.9 10.4 9.3 8.0 6.7 5.5 4.3


Note :
1. Type of working liquid the water is used in the usual condition with standard temperature at 15? (or its range from 0? to 65?)or at least its temperature is lower 10? than the boiling point.
2. The above water consumption indicates the data under standard speed of the pump. For various speeds, the practical value in the chart should multiply the ratio between the practical speed and the standard speed.
